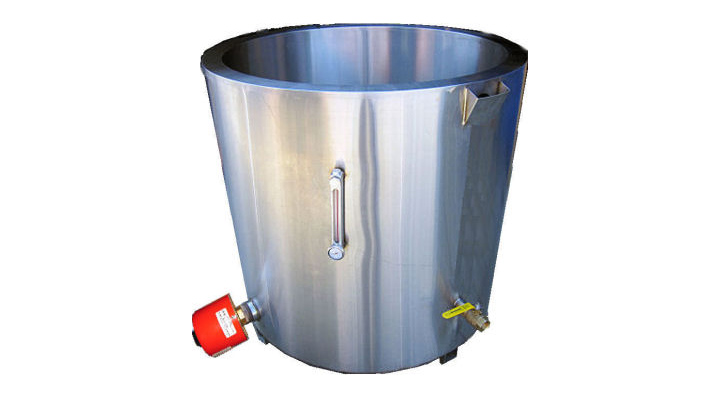

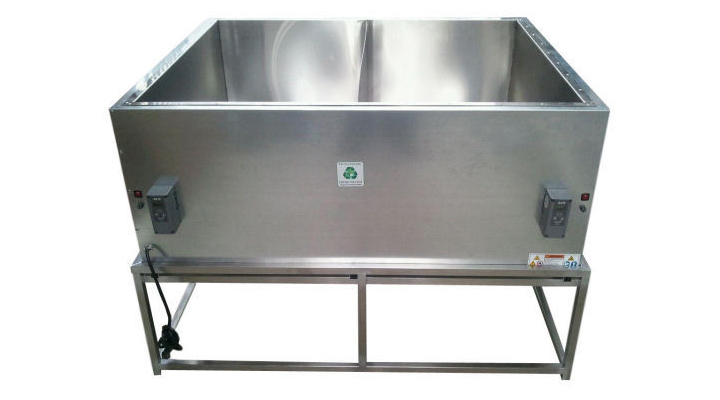

Candle machine Wax Melting Tank
It is made of tube for melting,wax attemperator,filter,solenoid valve,stirring motor,beater,electric cabinet
This machine is widely used in candle production.
| Application | Wax Melting |
|---|---|
| Construction | Inner tank made out of SS-304 3 mm thick,Outer made out of MS with Powder coated |
| Heating media | Tubular Oil Jacketed Heating
6 Kw x 3 = 18 Kw/440 Volts. |
| Insulation | Ceramic Fibre Blanket to minimize the heat loss |
| Caster Wheel | 4” dia caster wheel will be provided |
| Mode of Control | Through Digital Temperature Controller with Contactor. |
| Control Panel | Consisting of Digital Temperature controller- 1 No,
Indication lamps,On/Off switch,Fuse carriers,and other electrical, Switchgear items. |
| Application | Wax Melting |
|---|---|
| Size | 1500mm x 650mm x 650mm |
| Construction | Inner tank made out of SS-304 1.8 mm thick
Outer made out of MS with Powder coated |
| Heating media | Through tubular Air Heating System.6 KW/440 Volts. |
| Insulation | Ceramic Fibre Blanket to minimize the heat loss |
| Caster Wheel | 4” dia caster wheel will be provided | Mode of Control | Through Digital Temperature Controller with SSR. |
| Control Panel | Consisting of Digital Temperature controller- 1 No,
Indication lamps,On/Off switch,Fuse carriers,and other electrical, Switchgear items. |
